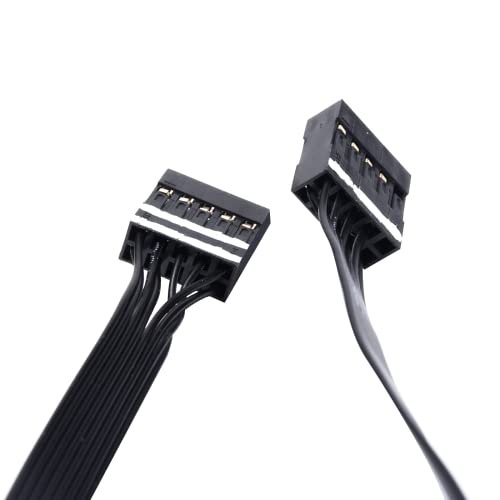

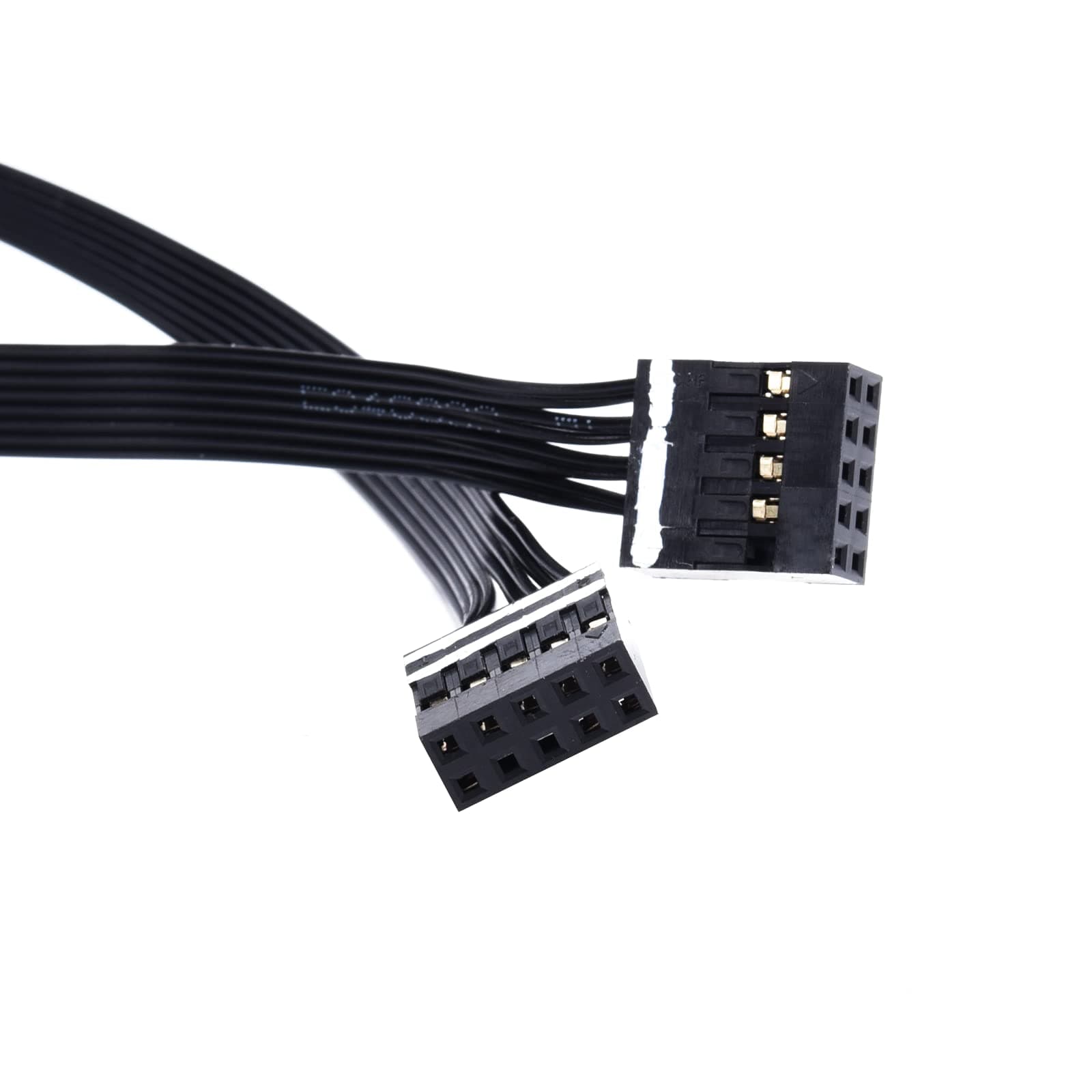

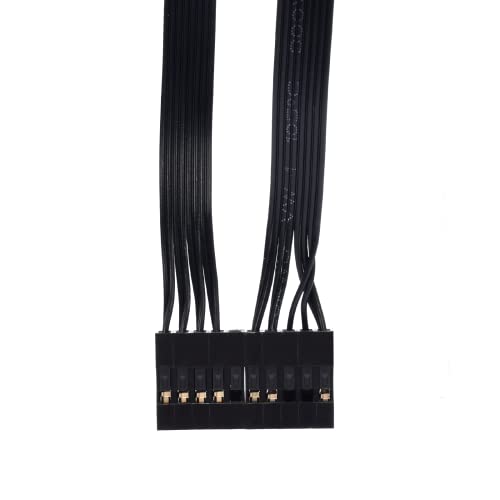

BIGTREETECH Interface Cable Realize SKR Mini E3 V3.0 & SKR Mini E3 V2.0 Control Board Compatible with Ender3 V2 Screen

Solved all my problems with the Ender 3 v2 screen rotary control knob not working after upgrading the main board to a BTT SKR Mini 3.

Seeing reviews of it not working- if you orient it correctly it works! If it’s backwards it won’t power on, if it’s upside down (white mark on bottom of pins) it won’t work. Just connect it correctly and it will work! This was just what i needed! Worked with 0 issues

This review is for the BIGTREETECH Interface Cable (SKR Mini E3 V3 to Ender-3 v2 LCD) I purchased the SKR Mini E3 V3 when it first came out and love it. However, the LCD that comes with the Ender-3 v2 does not work with this board using the standard video cable. Fortunately I had a generic 12864 LCD which worked well. I recently found the BIGTREETECH Interface Cable on Amazon and ordered it so that I could return to using the E3 v2 LCD. Unfortunately, the cable is just too short. The original cable is about 50 cm and the cable that was shipped is around 30 cm. Additionally, the plugs on each end are not the same as the original in that they don't use a notch, which means you can inadvertently insert the cable backward. This fact is discussed in the product description on Amazon, but there are no instructions included with the product. I was able to confirm that the cable works by squishing it between the controller box and the controller box cover, and by removing the tool drawer that comes with the E3 v2. I upgraded my Ender-3 v2 by using several BIGTREETECH products and have been happy up to now, but this is disappointing.

I have a CR-10s with the display that has 3 connections (EXP-1, EXP-2, EXP-3). The OEM Creality board had 2 cables running from the controller to the display. I upgraded the controller to the BTT SKR Mini e3 v3.0, which just has a connection for a single cable. I kept seeing people referencing cutting/rewiring one of the original cables, or buying this as a replacement to get the OEM display to work with the new board, so I bought this to make the install go smoother. Long story short, this cable was totally unnecessary - one of the oem cables runs from the port on the new controller board to the EXP-3 port on the display, and it works perfectly. Additionally, I think it's kind of silly that BTT makes this cable for their own boards, but couldn't source the correct connector? It fits the pins correctly, but the instructions for connecting the cable are kind of ridiculous.

if you are upgrading and ender 3 v2 with an skr mini from big tree tech, you need this cable to maintain the factory screen that said, don't make my mistake and purchase it separately it is available as a package deal with the main board for cheaper

Works as I planned, saw a review on the board and purchased it to quiet down my printer. It works great, was very simple to setup, just remember to label the wiring before removing the stock board. Mine came with the latest firmware update which was awesome, I recommend you check in your settings. This also ass the the option to add a new touch screen which is neat, but I wont go that route yet.

Bought this when I was looking to hush the motors a bit, had dampeners ordered but figured this would be a better option since I will be upgrading more later. This gives me a better platform to continue making upgrades. Swap was simple, just read and follow directions.

Used it to run klipper and it was working amazing until I tripped on the cable and ripped the usb connector off the board

Es un simple cable con costo superior a la placa. Y ese cuesta menos del 10% des costo publicado

This cable worked perfectly on my Ender3v2 with BTT SKR Mini V3 mainboard. The original v4.3.1 mainboard by Creality was the one they created during the pandemic. Due to the chip shortages, they used low quality stepper drivers and it was incredibly loud. Now with the new BTT SKR Mini V3 mainboard it's silent.
