60+7.5 uf MFD ±5% 370 or 440 Volt AC CBB65B Dual Run Round Capacitor Replacement Part by Blue Stars - Exact Fit for Condenser Straight Cool or Heat Pump Air Conditioner

Descripción

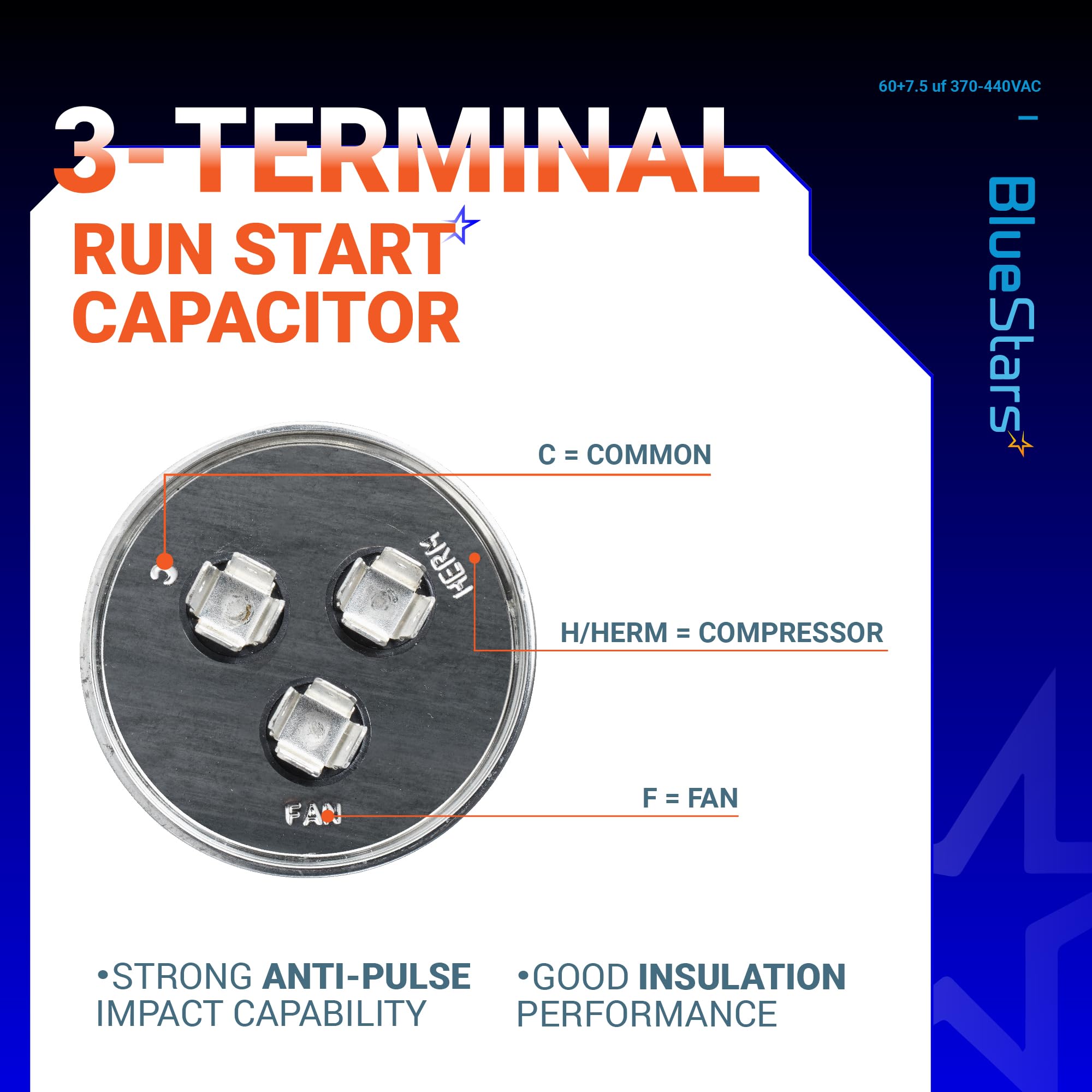

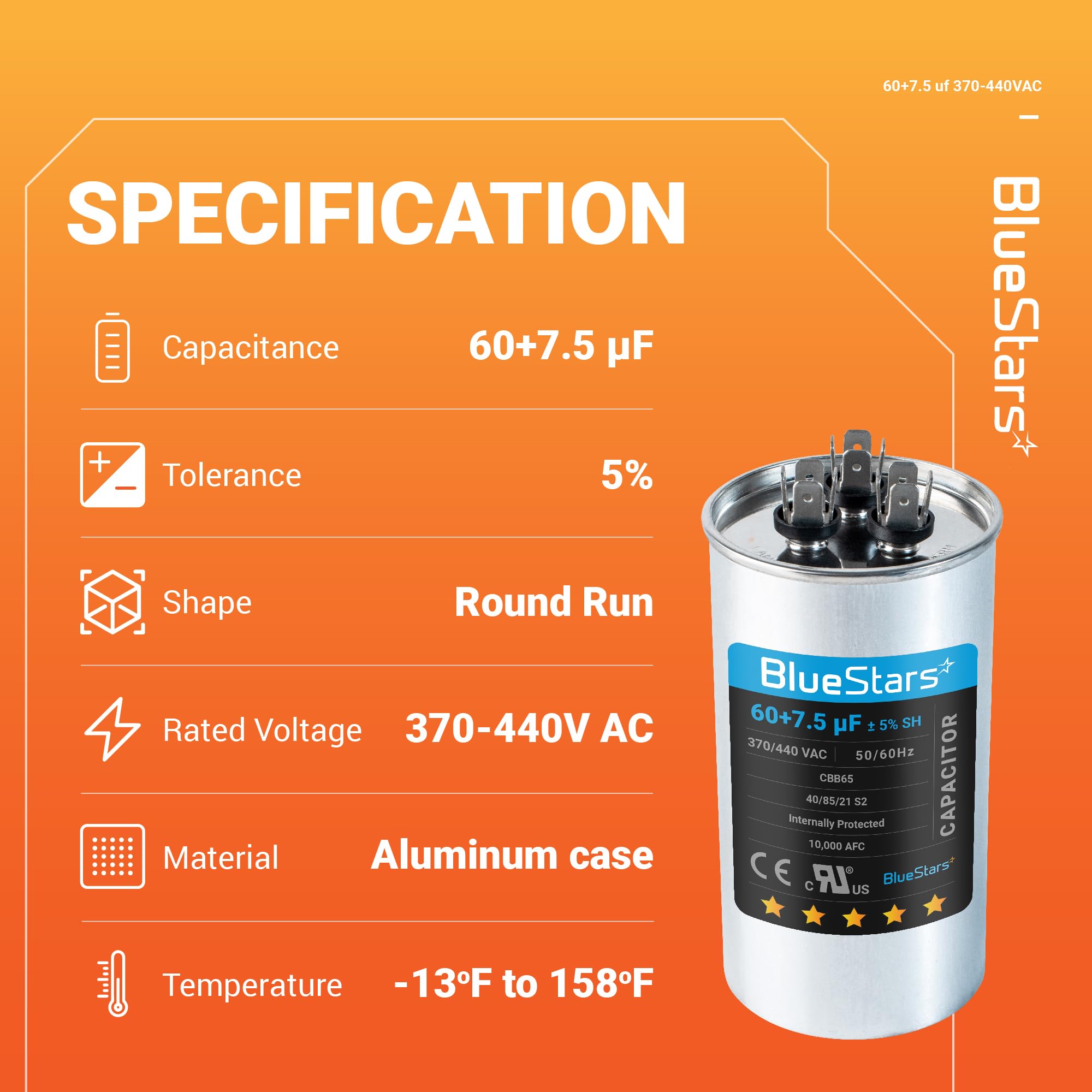

SPECIFICATION A capacitor is an electric component that temporarily stores an electrical charge. A dual "run capacitor" supports two electric motors, such as in large air conditioner or heat pump units, with both a fan motor and a compressor motor. It saves space by combining two physical capacitors into one case. The dual capacitor has three terminals on the top labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line. Round cylinder-shaped dual run capacitors are commonly used for air conditioning, to help in the starting of the compressor and the condenser fan motor. Technical Specification Capacity: 60+7.5 uf Tolerance: ±5% Size: 63.5mm Diameter x 120mm Height Rated voltage: 370-440 V Frequency: 50/60 Hz Safety rated: 10,000 AFC Operating temperature: -25 ℃ to +70℃ Count on our 60+7.5 uf Dual Run Round Capacitor for an unrivaled mix of durability, convenient functionality, and great value for money. Click ‘Add to Cart’ now! If you are unsure our replacement part will fit your appliance model, you can ask us in Customer questions & answers section or contact us by visiting the Blue Stars LLC storefront -- click the "Blue Stars LLC" on a product page to get to the storefront -- then click the "Ask a question" link under Further Information. Select your reason, and then tell us about the question.
