🔧 Connect Like a Pro, Power Like a Boss

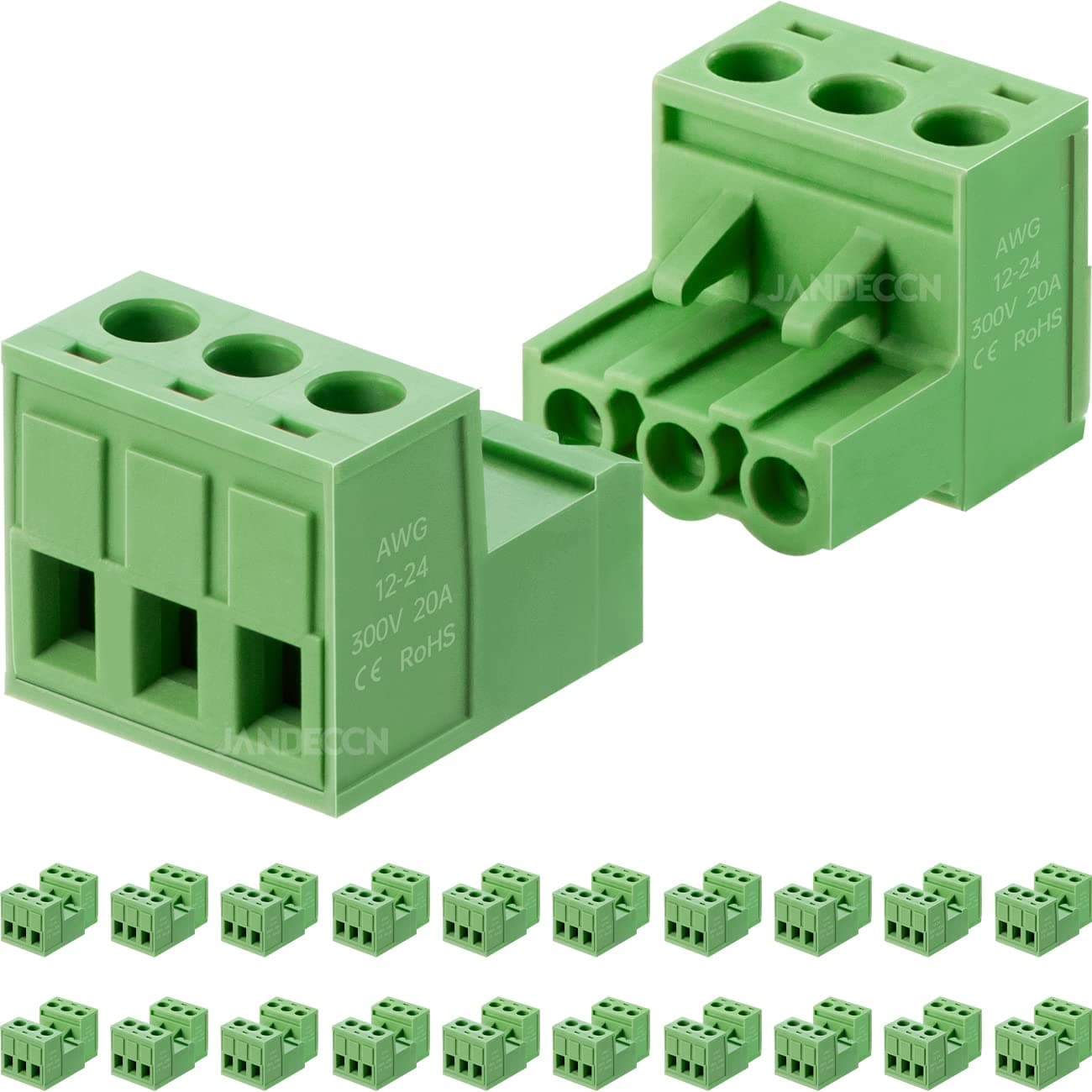

JANDECCN 3P PCB Screw Terminals deliver reliable, high-current connections with a precise 5.08mm pitch and durable V0 flame retardant PA66 housing. Rated for 20A and 300V, these terminals support wire gauges from 12-24 AWG and withstand temperatures from -40°C to 105°C. Designed for easy installation and removal, they’re perfect for professional-grade electronics, DIY projects, and industrial applications where safety and performance matter.
| ASIN | B09WCXZN25 |
| Best Sellers Rank | #36,628 in Industrial & Scientific ( See Top 100 in Industrial & Scientific ) #38 in Screw Terminals |
| Brand Name | JANDECCN |
| Centerline Length | 5.08 Millimeters |
| Color | 3P-C (20 Sets) |
| Connector Type | Screw |
| Current Rating | 20 Amps |
| Customer Reviews | 4.7 4.7 out of 5 stars (76) |
| Gauge | 12.0 |
| Item Dimensions W x H | 0.74"W x 0.59"H |
| Manufacturer | JANDECCN |
| Material Type | Plastic |
| Model | 2EDGK-5.08-3P |
| Mounting Type | DIN Rail Mount, PCB Mount |
| Number Of Contacts | 3 |
| Number Of Poles | 3 |
| Number of Positions | 3 |
| Part Number | 2EDGK-5.08-3P |
| Pitch | 5.08 Millimeters |
| Specification Met | UL |
| UPC | 735279653960 |
| Unit Count | 40.0 Count |
| Upper Temperature Rating | 105 Degrees Celsius |
| Voltage | 300 Volts |
B**.
Works well for under the cabinet lighting.
I bought some under the cabinet lining and had to cut the ends to run the wires so they were hidden. This allowed me to connect them easily. Wire stay secure.
R**D
Awesome.
I use the 3 pin because I troubleshoot BACnet mstp devices over an FLN constantly. So i have a separate USB to raw wire end and connect the female to that end. Then all I have to do is unhook the Fln from the panel and plug in to my cable. BOOM! I also pre make different cable lengths so I can move to a better spot or if I want to connect in the middle of the Fln. Pretty handy. Can use them as a splice if a cable gets cut or you need to disconnect a device but it doesn't have a terminal block. Great to have on hand. I use the 2 pin to make hooking and unhooking 24v devices a little easier and less.."sparky". Keep a box in your van and 2 of each set in your bag. Good to go.
W**R
Work as advertised. Nice tight connection.
Use these for guitar pickups. Work great to create nice tight solderless connections
A**T
Too many versus too less
I would like to have an option of choosing a number of items. I just did not need as many as comes with minimum order. However, the stuff is good and serves the purpose well.
K**W
easy to assemble and easy to disconnect
I used these to wire up a solar trickle/maintenance charger for a car battery. Many connectors require a special crimp tool to wire up the pins. These use the "Euro" style straight clamp operated by a screw - no crude grinding of a screw on the wire - so easy to make connections without messing up the wire and no need for special tools. The plug/socket pair plug together well, and it is not easy to pull them apart. But they can be eased apart just by inserting a blade screwdriver between the two halves.
P**.
perfect two pin phoenix connectors
worked fin for amp that required two pin phoenix connectors. can be used side by side to make 4 pin connectors too.
M**G
exactly what we needed!
Just as advertised. Thanks!
B**A
Perfect!
Used these to tie into some LED lights in the attic and worked great.
