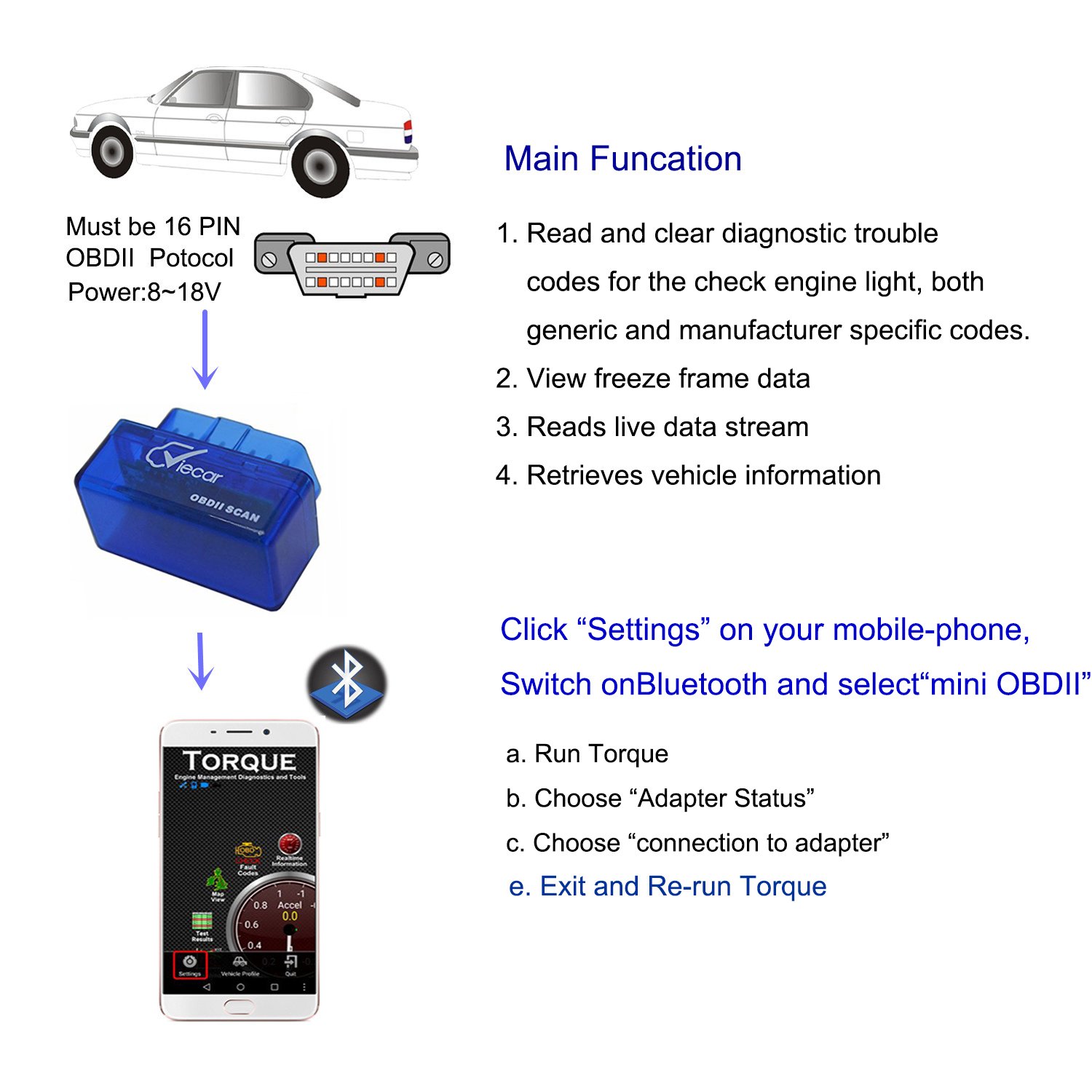

Product Functions:

Read and clear generic and manufacturer specific Diagnostic Trouble Codes (DTCs) and turn off check engine light .

Support multiple trouble code requests: generic codes, pending codes and manufacturer specific codes .

Review the emission readiness status of OBD monitors.

Determine the malfunction indicator lamp (MIL) status .

Retrieve VIN (Vehicle Identification No.) on 2002 and newer vehicles that support Mode 9.

No batteries needed-powered via detachable OBD II cable.

Supports OBD-II protocols:

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

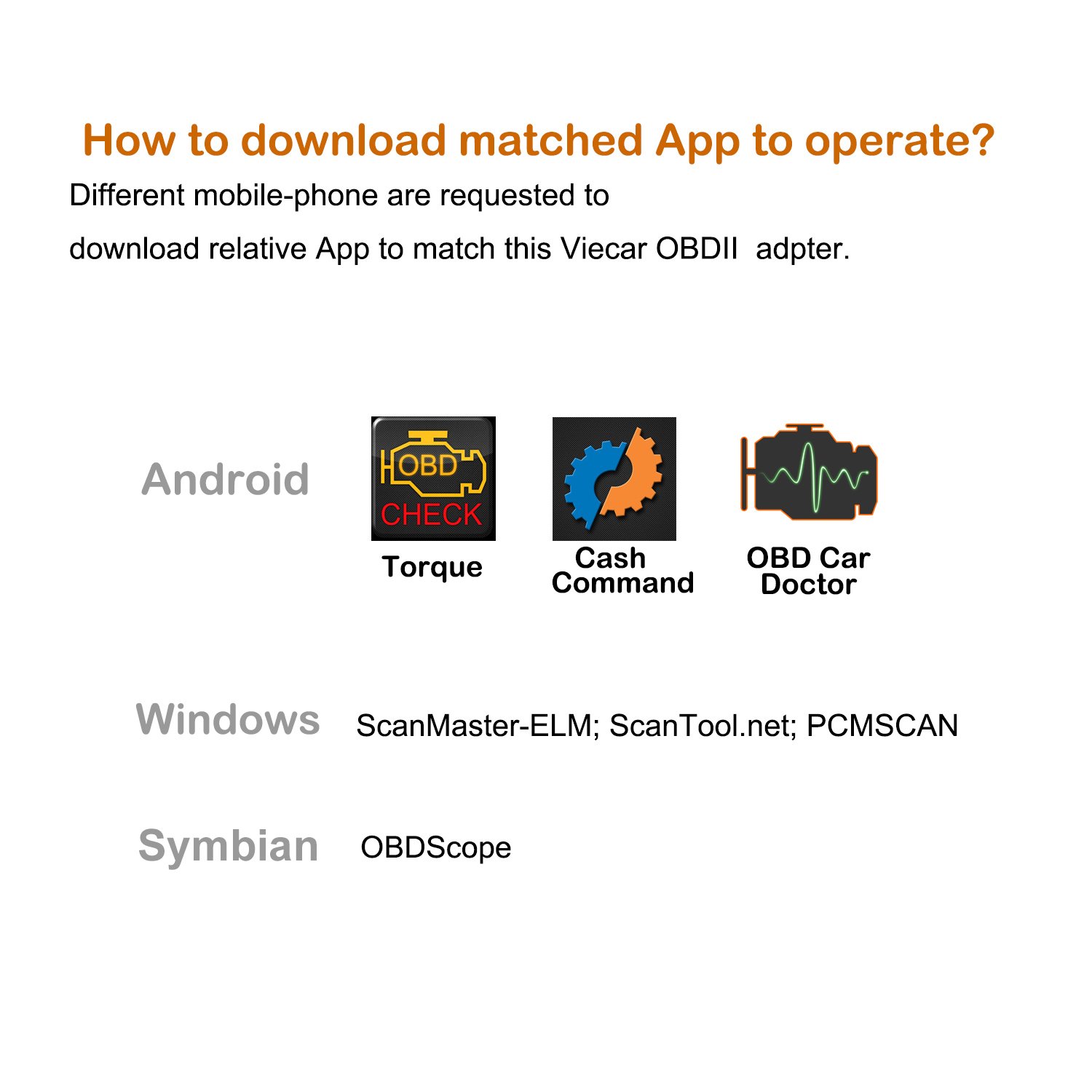

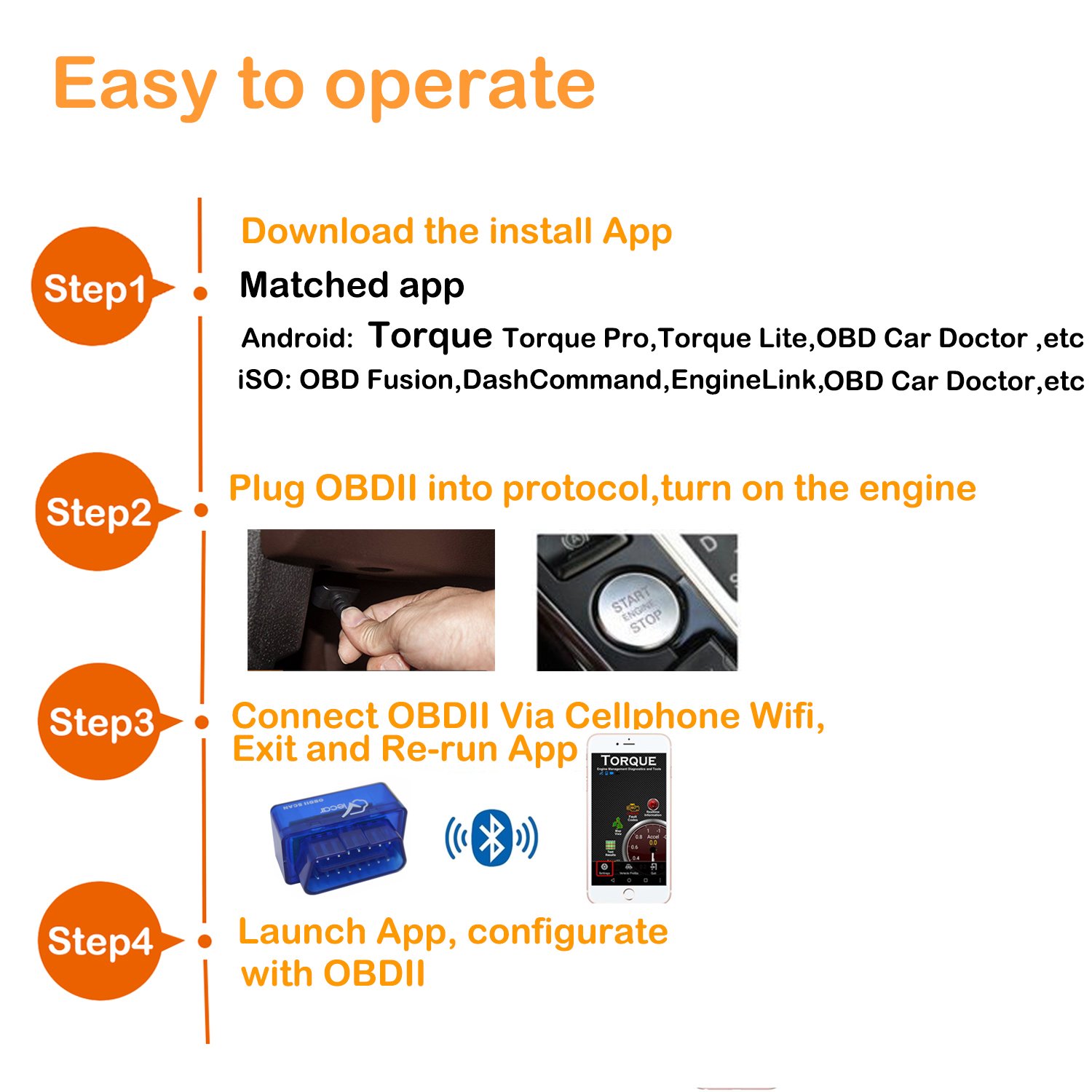

Matched App Window :

ScanMaster-ELM, ScanTool.net, PCMSCAN;

Android : Torque, OBD Car Doctor, Mini OBD, DashCommand, EOBD;

Symbian : OBDScope.

Specifications:

Operating Temperature: 0～60℃ (32～140°F) Storage

Temperature: -20～70℃ (-41～58 °F)

Power: 8～18V provided via vehicle battery

Dimensions:6.5*2.5*11c (Inch:2.6"*0.9"*4.3")

Weight: NW:120g (0.26lb); GW:15g (0.33lb)

Package :

1 x VC001 Scanner main unit； 1 x User's Manual

kindly Note:

◆Must be 16 PIN OBD II potocol;Not work for ABS and Airbag;Scanner tool no need to update.

◆Please read all the information carefully before purchasing.If you have any question,please free to contact us.

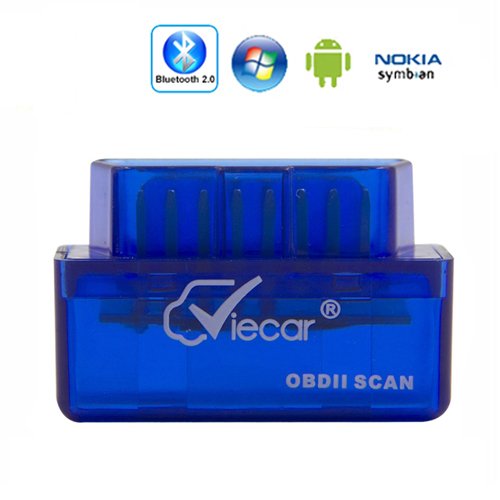

COOLANS Obd2 Code Scanner Bluetooth Universal Car Engine Diagnostic Tool Automotive Fault Code Reader CAN Obd II Eobd Scan Tool For Android Windows and Symbian
