🚀 Boost Your Signal, Elevate Your Connection!

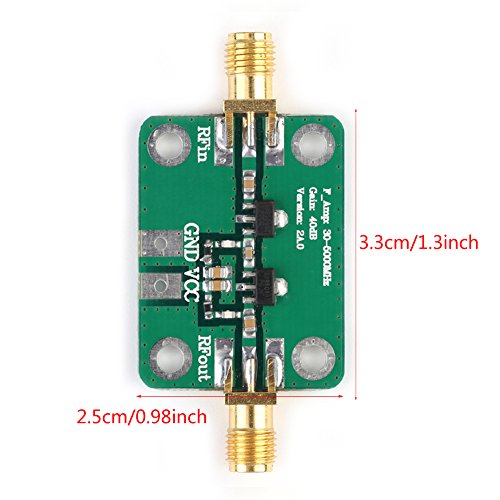

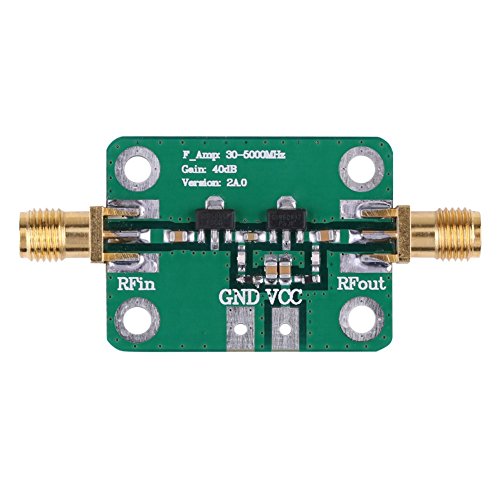

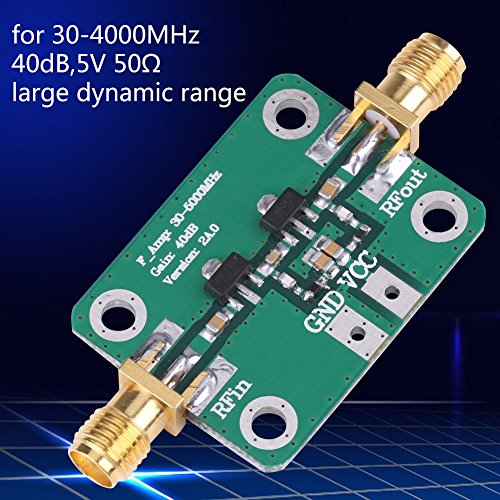

This 30-4000MHz RF broadband amplifier module delivers a robust 40dB gain with a wide dynamic range, ideal for enhancing FM, HF, VHF, and UHF signals. Operating at a low 5V supply and drawing just 135mA, it offers stable, high-performance amplification in a compact 8g surface-mount design, perfect for applications like shortwave radios, GPS navigation, cable TV, and remote control receivers.
| ASIN | B079Z6FSVQ |
| Best Sellers Rank | #83,136 in Electronics ( See Top 100 in Electronics ) #502 in Audio Component Amplifiers |
| Brand | Walfront |
| Date First Available | March 3, 2018 |
| Item Weight | 0.352 ounces |
| Item model number | Walfrontbornq938tv |
| Manufacturer | Walfront |
| Material | Copper |
| Maximum Supply Voltage | 5 Volts (DC) |
| Minimum Supply Voltage | 5 Volts (DC) |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Output Power | 0.1 Watts |
| Package Type Name | shipping box or small electronics component box |
| Specification Met | FCC |
| Supply Current | 135 Milliamps |
| UPC | 663862956313 |
| Voltage | 5 Volts (DC) |
B**S
It does exactly what I want it to
Mt t mobile home 5 g needed a boost and it helps added a usb port for charging/ power supply and it works also plenty of info out there on how to
A**Y
Garbage
Burned out within 5 minutes. When it did run it had a very bad oscillation In gain. Indicating that it was built with poor components.
G**S
It works, BUT
I bought 2 of them and tested them with 2 different instruments the R3465 spectrum analyzer with tracking generator and the liteVNA64 There was a 50dB DC to 18Ghz attenuator in the input to make sure the amplifier was not driven into saturation. The amplifiers did not make the published spec of 40db at 4Ghz. That is the only reason it has only 3 stars. The highest gain is 50db at 5Mhz, then it becomes flat with 41 db to around 550Mhz, 1Ghz 40db, 2Ghz 35db,3Ghz 32db, 4Ghz 27db, it does have gain at higher frequencies, 5Ghz 25db, 6Ghz 22db, 8Ghz 14db. Both amplifiers agree within +-2db. The reverse isolation at 1Ghz (my frequency of interest) is 34db.
D**N
Does not work
When connected to 5V the PCB draws 120mA, when RF signal applied at 150MHz current draw drops to 60mA. RF single strength drops 30dB and is not amplified. Either I received bad board or bad design. Unable to find a data sheet on the mentioned SBB5089Z. No information included with part. Product does not work as advertised.
J**E
Ordered three but only two worked.
Very nice clean circuit boards.
J**T
Damn food preamp
Little amp but really pulls in the signals!!!!
J**3
Worked for a bit then died
It was working for a day then died. Trouble shoot it. Was getting steady 5volts to the device. Tested through a signal meter and no good. Tested strong before. Eh what can you do. Those things happen sometimes. I replaced it with a different one and it works
G**1
Wrong component loaded from the manufacture?
The board came is a sealed bag but was loaded with wrong IC. First rf amp is SBB5089Z the second device was loaded with AMS1117-3.3 a voltage regulator instead of a second SBB5089Z. By luck that spotted before install. Returning to seller
M**L
No aplifica nada y bloquea la señal de entrada
