Product Introduction:

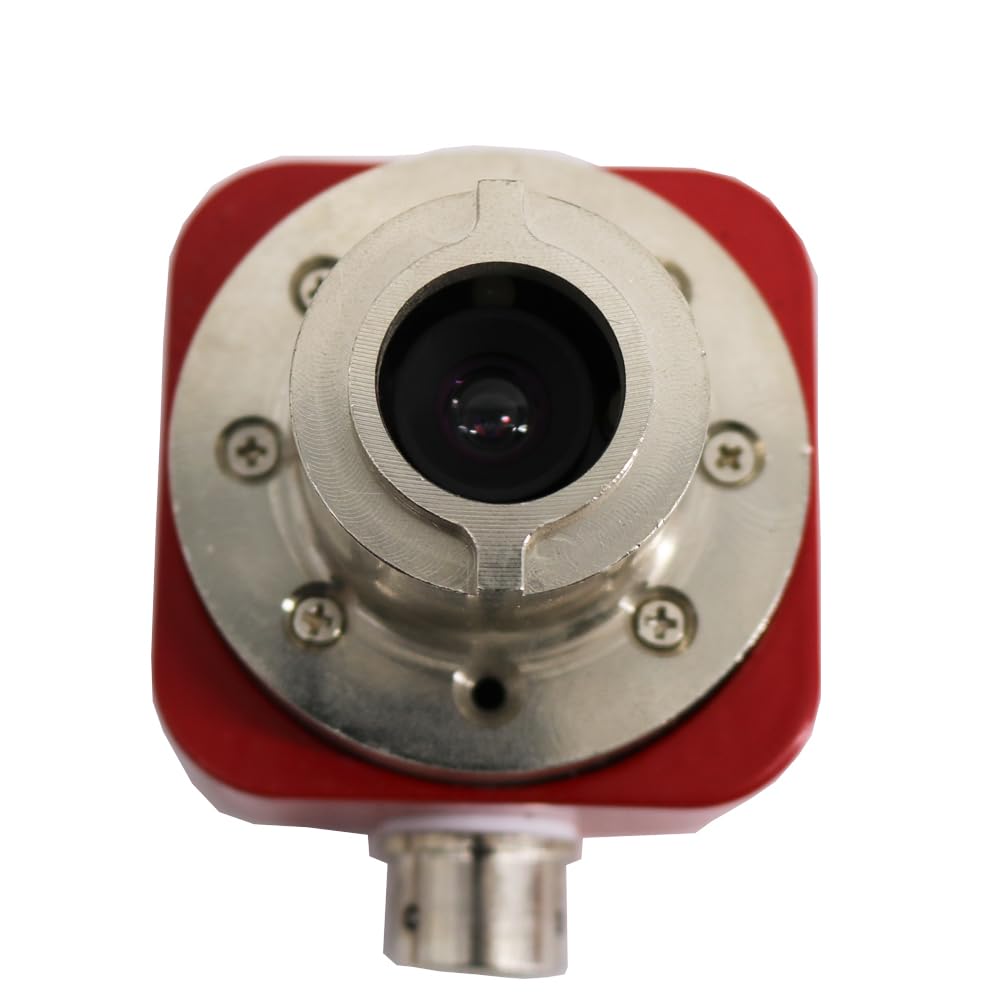

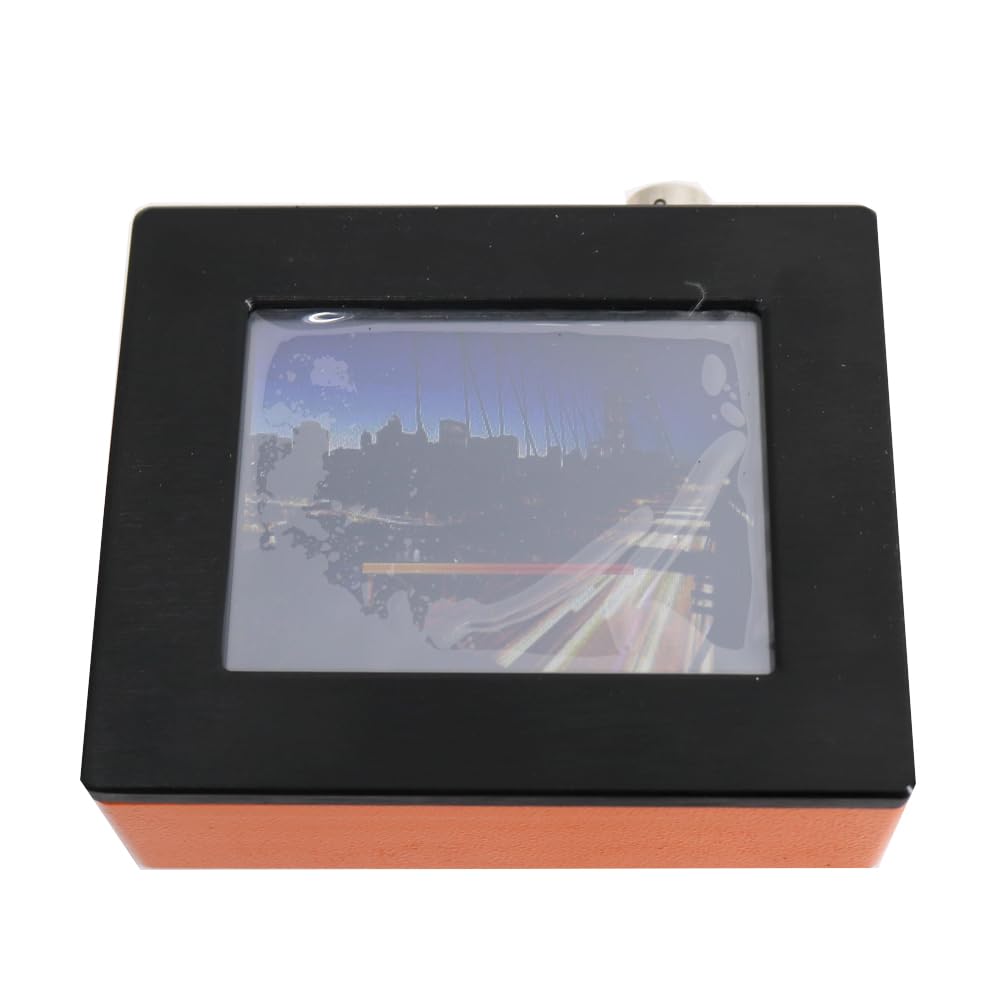

CK-102 series of quantitative detection of crack width gauge can be widely used in bridges, tunnels, buildings, concrete pavement, metal surface crack width. Equipment mainly consists of a handheld color LCD screen host, color microscopic amplification probe (with 1.5 m connection cable) constitutes a measurement program automatically scans the capture cracks and crack width values in real-time display on the screen, can also be the need to crack take pictures (cracks in the photo while preserving fracture images, the width of the data, scales, to enlarge the image information) of the factor and the crack number, crack photo as a standard BMP format and stored directly to any U disk to facilitate further image analysis of the user or print archive.

Main technical parameters:

1.The maximum detection range of 0-8mm;

2.Accuracy: better than 1mm;

3.Magnification: 40 times / 20 times / 13 times / 10 times, optional;

4.40 times the probe:

Automatic reading of the measuring range :0.01-2 .1 mm;

Automatic reading accuracy: better than 0.01mm (± 0.007mm) (20 times the probe);

5.20 times the probe:

Automatic reading of the measuring range :0.01-4 .2 mm;

Automatic reading accuracy: better than 0.02mm (± 0.013mm) (20 times the probe);

6.The Operating Temperature: -20 ~ 60 ° C

7.Host Interface: standard USB;

8.The storage media: can be stored for more than 3000 photos (SD Card is free to expand);

9.Image storage format: BMP format, 24 bit color / 320 * 240;

10.Power supply: lithium battery, standby time: 18 hours;

11.Size: Host 113x70x16.5mm;

12.Probe: 48x56x58mm;

13.Weight: host 100 grams, 100 grams of the probe.

Manufacturer	Graigar
Part Number	CK-102
Item Weight	6.6 pounds
Product Dimensions	4.45 x 2.76 x 0.65 inches
Item model number	CK-102
Is Discontinued By Manufacturer	No
Size	Medium
Color	Black
Style	Digital
Material	Plastic
Item Package Quantity	1
Batteries Included?	Yes
Batteries Required?	Yes

CK-102 Digital Concrete Crack Width Tester Gauge Meter 0 to 8mm Bridges Tunnels Buildings Metal Surface Crack Width Slit Width Gauge Observation Instruments
