Will this drive 3 monitors? the 40ac0135us has 2 dp outputs and 1 vga to do 3 monitors. would the 40an0135us be able to run 3 between the dp/hdmi?

There is a chapter in the user guide listing the "Maximum Resolutions" supported for 1, 2 & 3 external monitors: • One external monitor – DP:3840 x 2160 pixels / 60 Hz – HDMI:3840 x 2160 pixels / 30 Hz – Thunderbolt 3:3840 x 2160 pixels / 60 Hz – VGA:1920 x 1200 pixels / 60 Hz • Two external monitors simultaneous – DP1 and DP2 / HDMI:DP1 3840 x 2160 pixels / 30 Hz; DP2 / HDMI 3840 x 2160 pixels / 30 Hz – DP1 and Thunderbolt 3: DP1 3840 x 2160 pixels / 60 Hz; Thunderbolt 3 3840 x 2160 pixels / 60 Hz – DP1 and VGA: DP1 3840 x 2160 pixels / 30 Hz; VGA 1920 x 1200 pixels / 60 Hz – DP2 / HDMI and Thunderbolt 3: DP2 3840 x 2160 pixels / 60 Hz; HDMI 3840 x 2160 pixels / 30 Hz; Thunderbolt 3 3840 x 2160 pixels / 60 Hz – DP2 / HDMI and VGA: DP2 / HDMI 3840 x 2160 pixels / 30 Hz; VGA 1920 x 1200 pixels / 60 Hz – Thunderbolt 3 and VGA: Thunderbolt 3 3840 x 2160 pixels / 60 Hz; VGA 1920 x 1200 pixels / 60 Hz • Three external monitors simultaneous – DP1, DP2 / HDMI, and Thunderbolt 3: DP1 3840 x 2160 pixels / 30 Hz; DP2 / HDMI 3840 x 2160 pixels / 30 Hz; and Thunderbolt 3 3840 x 2160 pixels / 60 Hz – DP1, DP2 / HDMI, and VGA: DP1 3840 x 2160 pixels / 30 Hz; DP2 / HDMI 1920 x 1080 pixels / 60 Hz; and VGA 1920 x 1080 pixels / 60 Hz – DP2 / HDMI, Thunderbolt 3, and VGA: DP2 / HDMI 3840 x 2160 pixels / 30 Hz; Thunderbolt 3 3840 x 2160 pixels / 60 Hz; and VGA 1920 x 1200 pixels / 60 Hz

Looking for dock that will work with the lenovo p52. will this work???

Don't count on it. When I plugged with Lenovo docking station into either T3 port on my Lenovo Y740 laptop, it wasn't even recognized fully by Win10. Only the video ports worked. None of the USB ports worked, and the Ethernet port only had blinking LEDs, but never came up in Win10. Other brands of T3 devices work fine in those same T3 ports, just not this docking station.

will this charge the Lenovo c940? Currently have it plugged in, 2 screens work, but it isnt charging.

I have a c940 as well and mine doesn't charge the laptop either. There is no 230w cord. Did you buy the cord separately and did it work for charging the laptop or did you return the product as an overpriced hub?

solo conectando al equipo es cargar el Notebook con el mismo cable??

El cable thunderbold es la conexión a todo lo que trae el dock , carga batería, varios monitores o TV , cable de red, periféricos de almacenamiento etc.

Brand	Lenovo
Manufacturer	Lenovo Group Limited
Model	40AN0135US
Product Dimensions	22 x 8 x 3 cm; 907.18 g
Item model number	40AN0135US
Hardware Interface	Thunderbolt, USB Docking Station
Compatible Devices	Laptops
Special Features	Powered
Colour Screen	No
Wattage	135 Watts
Batteries Included	No
Batteries Required	No
Data Transfer Rate	4E+1 Gigabits Per Second
Number of Ports	13
Total USB ports	5
Does it contain liquid?	No
Includes Rechargeable Battery	No
Includes remote	No
Manufacturer	Lenovo Group Limited
Item Weight	907 g

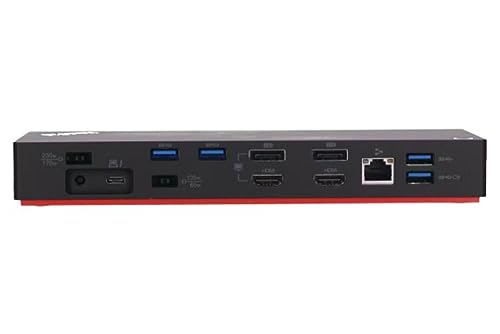

ThinkPad Thunderbolt 3 Dock Gen 2 - US - for Notebook - 135 W - USB Type C - Thunderbolt - Wired Warning: This product can expose you to chemicals including Lead, which is known to the Stat
