Looking for a Cat6A RJ45 plug that is:

Hassle-free, well documented, ANSI/TIA 568 Certified, and tested with real cables in the real world by real installers? Look no further, as you just found your plug!

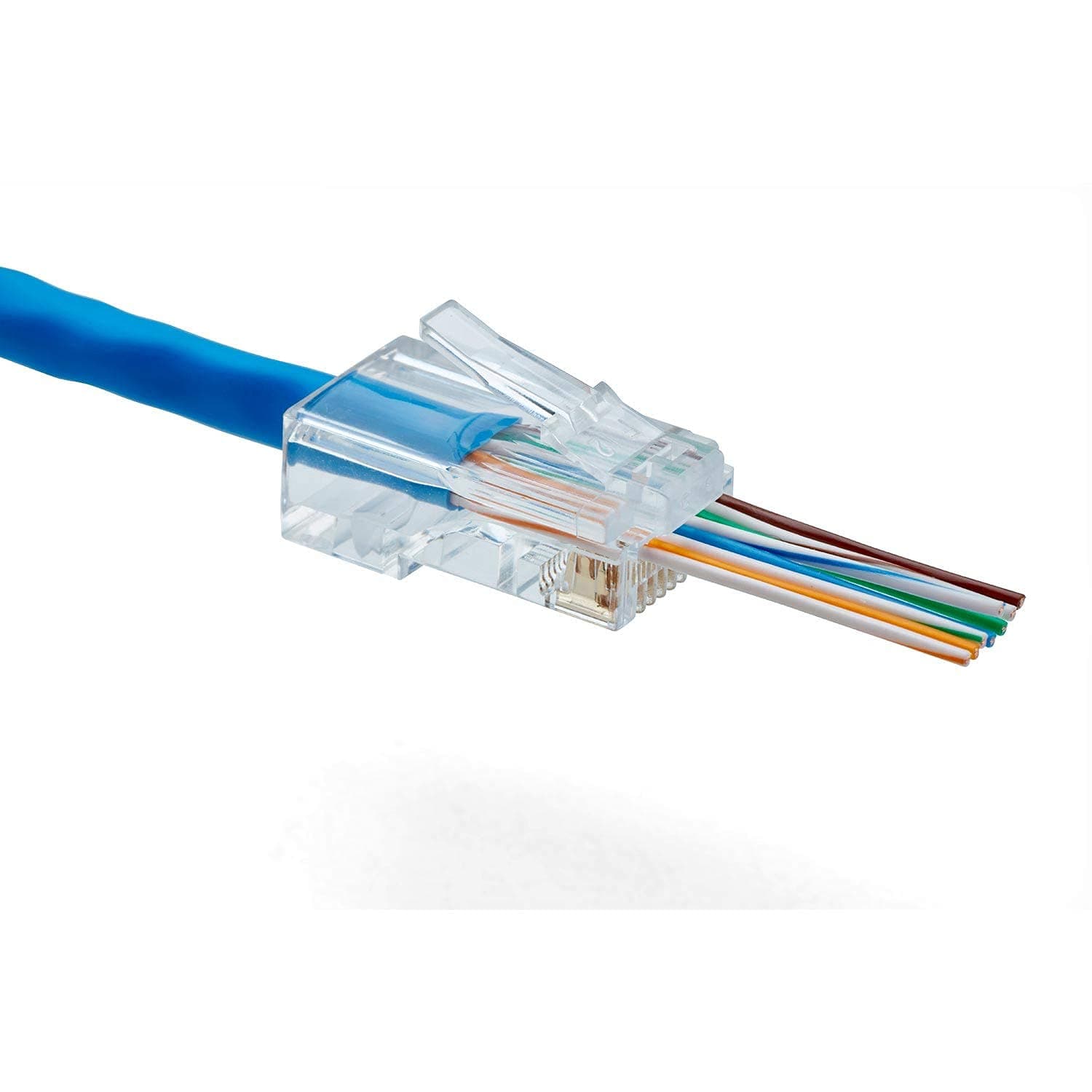

Our Cat6A Extra Large RJ45 plugs are to be used with unshielded (U/UTP) Ethernet cables, both stranded and solid conductors. The pass through design is where your frustration level will come down and success rate will increase. If you have ever dealt with the old style push-in or push-in with load bar plugs, then you know what we mean.

After stripping the cable jacket off and combing out the individual conductors, simply line up the conductors into the correct T568A or T568B color sequence and push them through the nose of the connector. Everything look good? If the wiring sequence is still correct, now pull. Use the push-pull method to help eliminate kinking of the conductors inside the plug and get the cable jacket up as far as possible into the rear of the connector. Using our All in One Crimp and Termination Tool, crimp and terminate the plug onto your cable. The conductors are shaved off, and the plug is ready to go. Onto the next one!

If you have a crimp and termination tool that do not shave off the conductors automatically, no big deal. Simply terminate the plug as you usually do and then flush cut the excess from the nose of the plug. Double check to make sure you do not leave any conductors protruding. Our Flush Cutters are ideal for this application.

This plug has been thoroughly Certified and tested with trueCABLE U/UTP Ethernet cables.

Brand	TRUE CABLE
Connector Type	ETHERNET CABLE, RJ45
Cable Type	Ethernet
Compatible Devices	Router, Server, Modem, Smart TV, Gaming Console, Security Camera
Special Feature	Tough
Recommended Uses For Product	connecting electronic devices, supporting Power over Ethernet (PoE)
Ethernet cable category	Cat 6a
Colour	Cat6/6A
Connector Gender	Male-to-Male
Data Transfer Rate	1E+1 Gigabits Per Second
Shape	Round
Number of Pins	8
Net Quantity	100 Count
Gauge	23.0
Specification Met	UL, RoHS
Indoor/Outdoor Usage	Outdoor
Number of Items	100
Customer Package Type	Standard Packaging
Wattage	100 Watts
Maximum Voltage	48 Volts
Outer Material	Plastic
Manufacturer	trueCABLE
UPC	675595375415
Model	MDPTRJ45_100pc
Product Dimensions	22.86 x 14.61 x 2.54 cm; 142 g
Item model number	MDPTRJ45_100pc
Special Features	Tough
Batteries Included	No
Batteries Required	No
Connector Type	Ethernet
Material	gold
Item Weight	142 g

trueCABLE Cat6 RJ45 Pass Through Connectors, Unshielded (UTP) Modular Plug, UL Listed, EZ Crimp End, Gold Plated 3 Prong 8P8C, 100 Pieces
