What fuel pump works for b&s intek 21hp engine model 4060770344E1

Go to B&S website with the engine model number and you can find the break down diagram to get the correct part number.

I have acquired a 2005 john deere riding mower with a 20 hp intek engine that the original fuel pump was missing . would this be the correct oem part?

I don't believe the question can be answered with certainty without the model number of the engine. The serial number would also be helpful. Please upload a photo of the required information.

Is this the correct fuel pump for a la175 john deere lawn tractor? thank you!

According to what I'm seeing the answer is no, however if you search for fuel pump for your mower you should get what you need.

Will this work for a mud buddy mini 23?

These little Fule Pumps work off the pulse of the engine.. They have 3 lines.. One is from the tank. One is TO the carburator.. One attaches to the engine pulse system. Some engines use a line off the valve cover ( over head valves) some engines use an attachment to the Oil Fill tube (the long ones)...Ther is NOTHING magice here..Almost any small engine with a carb can be made to work with a fuel pump..Either we get fuel to the carb by having a tank above the carb and let it flow freely by gravity or we have a tank below the carb and we pump fuel to the engine..I am not sure what you can do but I am sure I could rige a pulse line from any small engine and make this work...Even a Sthil Chain saw has an impulse line that pumps gas to feed the engine.. That's why a chain saw can run in almost any position..Even an electric fuel pump (as long as it's to so strong that if blows past the float needle valve shut off) can be made work by someone that knows how..I'm thinking one any small engine that has a single cylinder, small carb I'd be able to drill a oil fill tube as long as it's long enough to be above the oil and put some sort of pulse line on the motor..Maybe JB weld? Or if it's over head valves make a pulse line off the valve cover....There's a way where ther's a will.. back in 1978 I installed a 4 cylinger Ford Pinto engine in a VW bus.. 100,000 miles late I gave it away and the guy drove off.. It had recently had new inserts and rings and did not burn oil..Just believe in yourself.. You can't make a mistake you can't fix and learn from..be blessed,.

ASIN	B07H9T2X4T
Auto Part Position	Front
Body Material	Plastic
Brand	Briggs & Stratton
Brand Name	Briggs & Stratton
Compatible with Vehicle Type	Tractor
Connector Type	NPT
Country of Origin	USA
Customer Reviews	4.7 out of 5 stars 1,468 Reviews
Fit Type	Vehicle Specific Fit
Gas Type	Petrol
Global Trade Identification Number	00047282143636
Inlet Connection Size	0.75 Inches
Inlet Connection Type	Hose Barb
Item Dimensions	29 x 216 x 254 Millimeters
Item Weight	2 Ounces
Item dimensions L x W x H	29 x 216 x 254 Millimeters
Manufacturer	Briggs and Stratton
Manufacturer Part Number	597338
Material	Plastic
Material Type	Plastic
Mounting Type	Front Mount
Operation Mode	Automatic
Outlet Connection Size	0.75 Inches
Outlet Connection Type	Barb
Part Interchange Info	replacement
Product Grade	Replacement Part
Product Style	Modern
Specification Met	OE
UPC	047282143636
Vehicle Service Type	Tractor
What Is In the Box	Fuel Pump

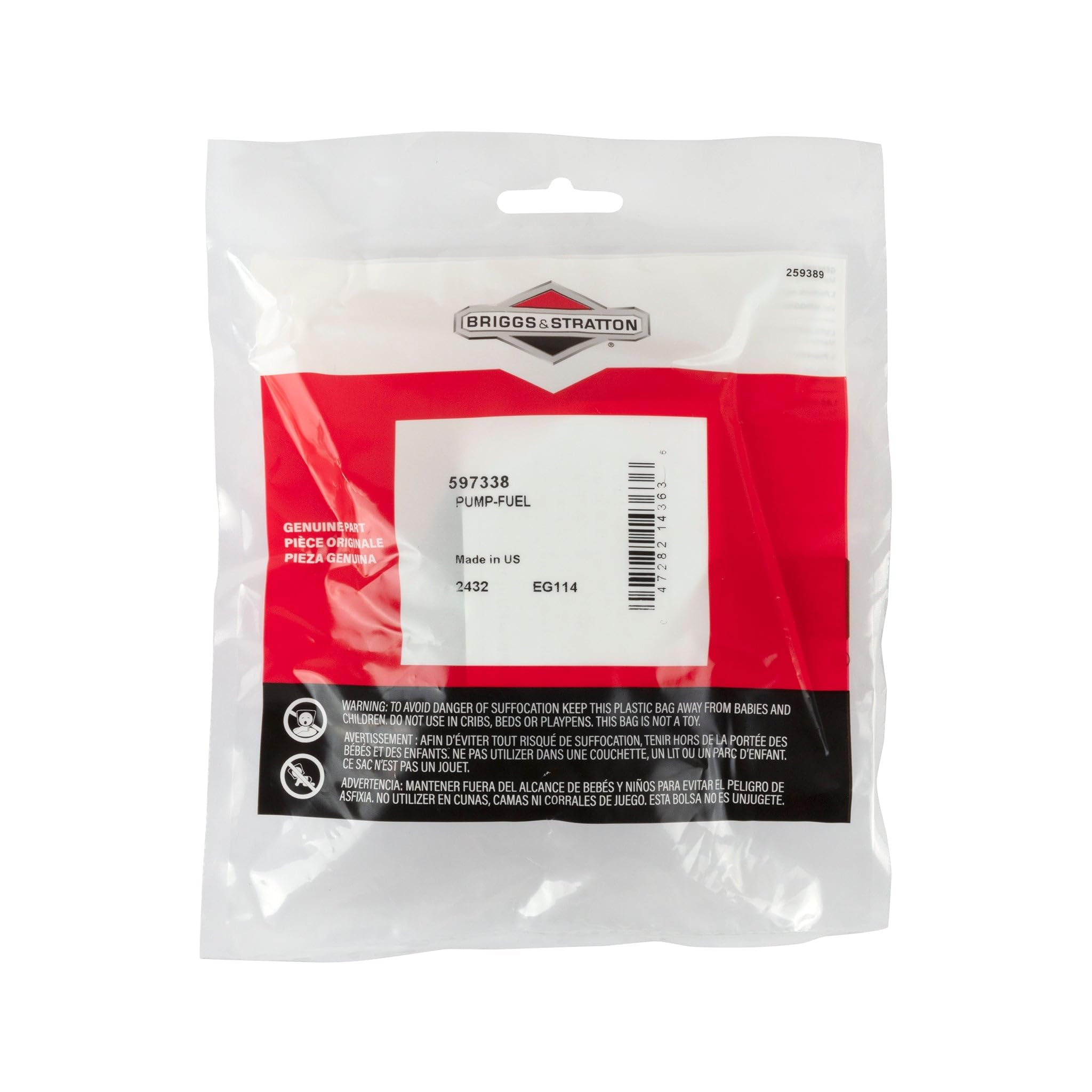

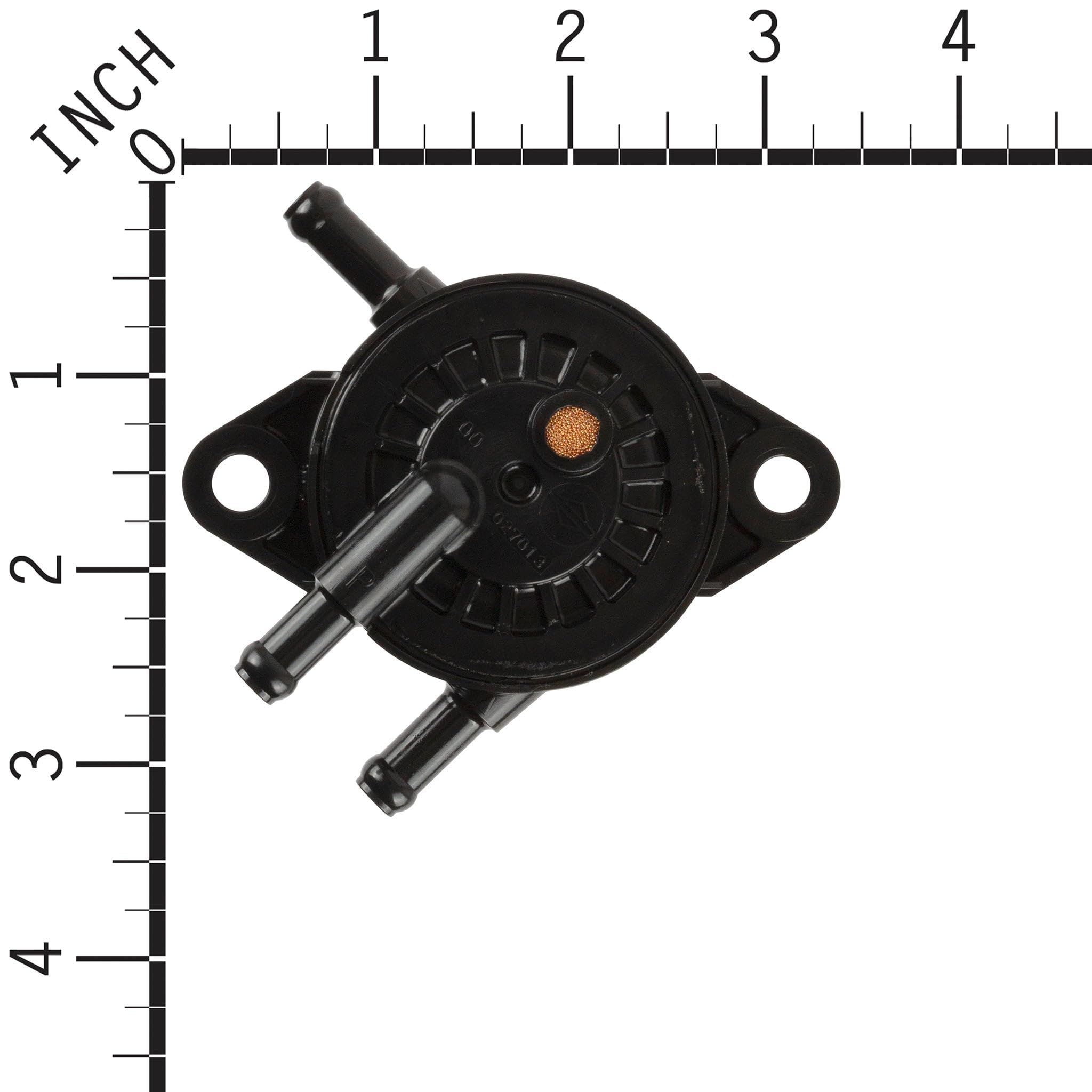

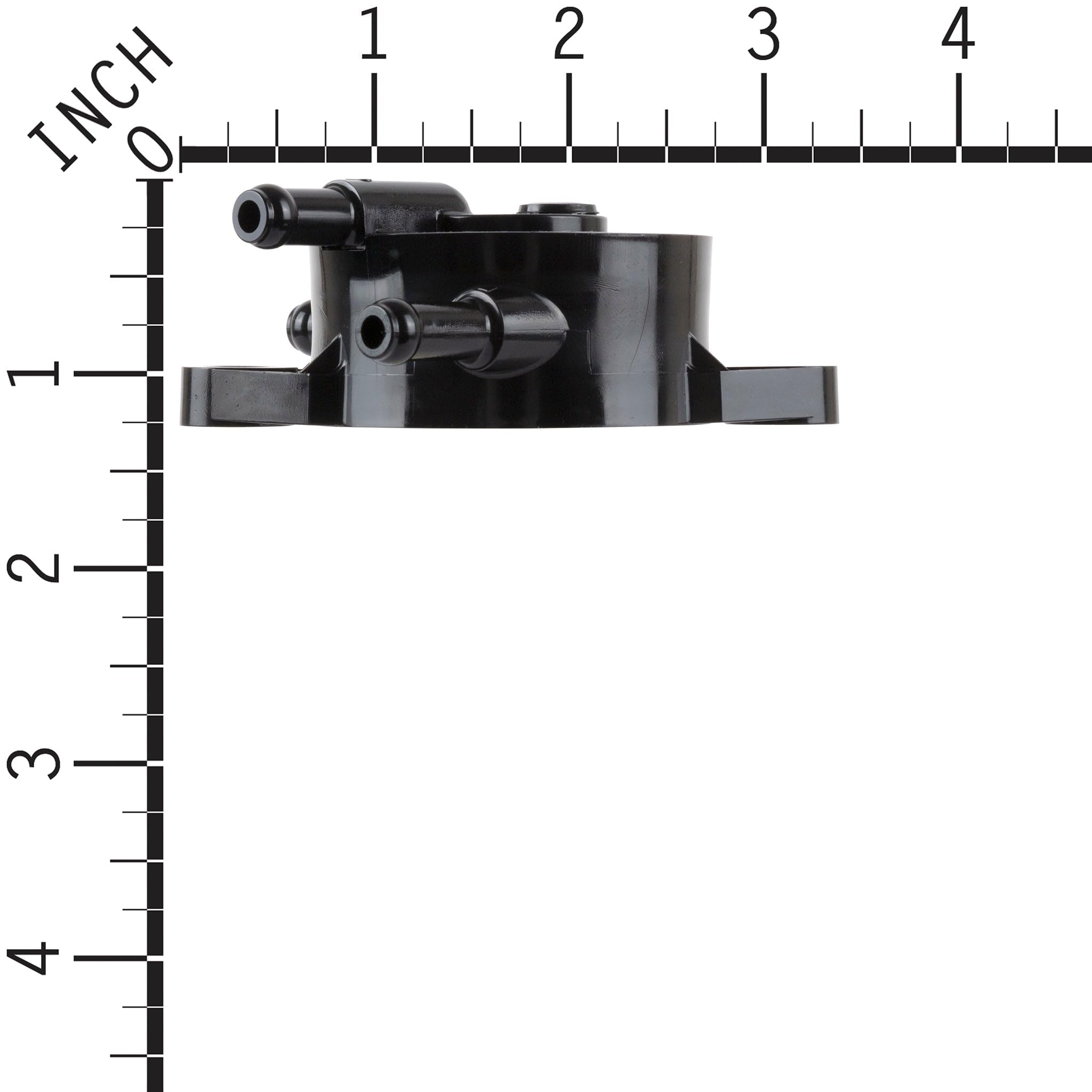

Briggs & Stratton 597338 Fuel Pump
