ChargerLAB Power-Z KM003C Portable USB-C Fast Charging Tester PD3.1 QC5.0 Digital Voltmeter & Ammeter Power Bank Tester

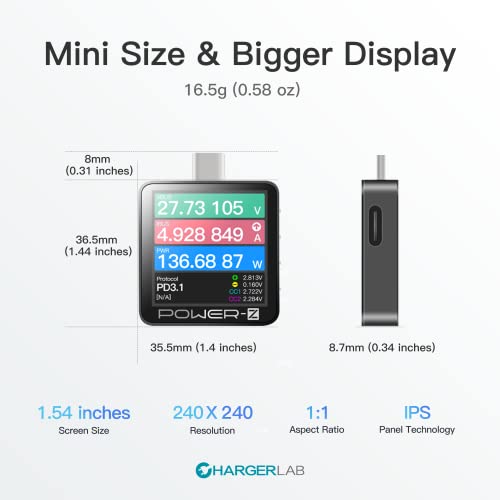

ChargerLab KM003C is by far the most modern USB-C tester, preserving all cable lines, thus it is Alt DisplayPort compatible and allows for video signal transmission with PD 3.1 support. It is surprisingly small, and the screen displays more information than the competition. By far the best USB tester, kudos to ChargerLab. I am providing an overall comment for three USB testers, all of which deserve to be purchased as they complement each other perfectly and are consistent in their results. I would like to dedicate the majority of this review to the Bit Trade One model, which has recently arrived on Amazon. It deserves a shoutout because the tool is exceptional and inexpensive for what it offers. The ADUSBCIM is a USB cable tester that truly complements traditional USB cable testers. Only the cable to be tested needs to be plugged into the A and B ports, and the tool does the rest. The reference value for calculating the cable's resistance is taken using a CR2032 battery, and I note that the calculation is very precise and stable. You can find on Bit Trade One's ADUSBCIM GitHub page, in the Pull Request section, a manual in English in PDF format. This is my small contribution to the project, as the current official English manual is more of a word-by-word description that is difficult to understand. Thanks to this tester, I discovered, for example, that Anker cables, the 765 series, were actually poor high-resistance cables, and that I had much better options for charging. I ended up wasting money on cables that turned out to be slower than cables that were given to me for free with computer accessories. The FNIRSI FNB58 is a very comprehensive USB-A and USB-C port tester. It notably offers numerous rapid charging protocol tests, can test the quality and resistance of a cable, and obtain oscilloscope-like graphical representations. Now that we are on PD3.0 and with PD3.1 approaching quickly, owning one of these tools is now essential to validate the proper functioning of an installation. I've read a lot of advice on Reddit, and if you're looking to equip yourself with the best products offering the most testing possibilities, here are the tester references to get: - Bit Trade One ADUSBCIM (very thorough cable tester testing all the lines of a cable) - FNIRSI FNB58 (the most comprehensive, many ports, many scenarios, USBA/C Micro) - ChargerLab KM003C (the most modern, TB4, 250W) If you have these three or at least a combination of the cable and usb tester, it will take you no more than a few days to become a USB expert. 👌

An expensive device, but really thought out and actually all you really need. The physical case is slick and sturdy, the software is well developed and works well and gives real insight to what is happening with your USB-C device and shows all communication. This device is a well worth investment tool

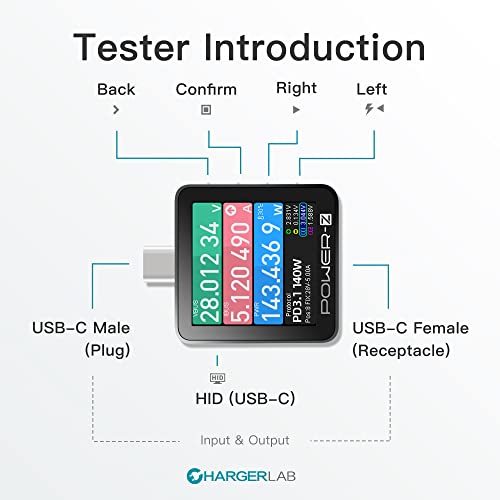

Alot of love has been put into this design and the software that goes with it. The software has a USB-C PD protocol analyzer that shows you the communication between devices as they negotiate the voltage and current levels that will be allowed and supplied which is very helpful if your designing a device that had USB-PD sink or source features which is what I'm doing which is something I have not seen in a device at this price range. This was a pleasant surprise when I started looking into the software features. The firmware is easily updatable via the software also which means you will not be missing out on any new features as the USB protocol changes over time. The display has a very nice layout and is easy to read and and navigation of the features is alright once you get used to what buttons do what. It's surprisingly smaller than I expected which makes it easy to bring along if you want. For me this allows me to quickly verify the power output of battery banks, AC chargers, and the power consumption of devices I use or am testing. The software allows you to graph out everything over time and save it to a file for later use or comparison. I can tell a lot of love was put into this design, UI, and Software and feel like for $100 it's a steal if you can use all the extra features it provides. Chargerlab has a great Blog where they tear down power banks and bigger solar charger systems and show exactly what is inside and what chips were used if your into those types of things. They use this meter to verify the capabilities of all these different products which means they have to make sure the meter is capable of detecting all the latest USB PD and other standards which means this will always be getting updates as things change over time. I would say spend the extra money and buy this one if you want the best.

Love this for testing cables, power warts and device draw. Good for helping find garbage vs good stuff.

Way too complicated. Not intended for casual use. Very difficult to setup and understand unless you’re an engineer in this field. Not fun. Capable, but if you’re not an electrical engineer, it will sit unused.

Compact metal case. Good software. Cry once.

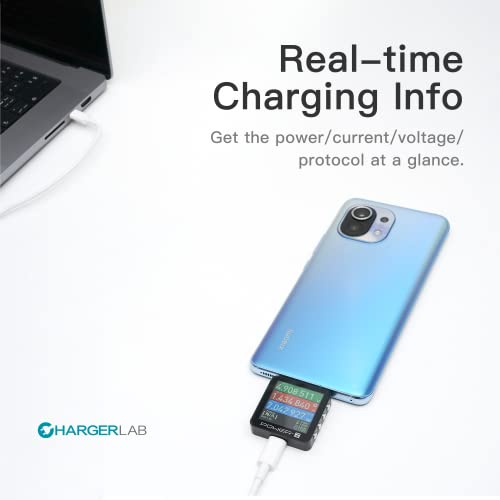

I could not figure out why some of my devices were not charging as fast as they 'should'. I used this wonderful device to troubleshoot, and found that some of my cables were not great. This device is *fantastic* for troubleshooting and verifying you are getting what you think you are. For example I learned our car is only spitting out 7 watts from its onboard USB ports. My anker powerbank is a 140W unit, but I can only get 30W to my portable device. That's when I learned my portable gaming device has a charge limit of 30W - good to know, now I can plan for how long it will take to recharge under the best of circumstances. So much good use for this tool, I highly recommend! It comes in a nice metal tin case with a protective foam cutout surround to protect it.

Works great. This is the second one I’m buying, it does it’s job well. The only reason I’m buying a second one, is I lost the first. It's a "prosumer" level tester. It will handle 20x a week (my level). I think a 100x a week would be fine. If you have a few techs doing that usage, I'd buy it. Even if one fails after a few months, it's only $100. Most of the units will last longer. It fits in a pocket, so it's great for running around all over the place. It's not an industrial level device. I wouldn't recommend it for that. Anything that big wouldn't be portable.

Does the job to tell what your USB-C to USB-C really is. Is it a pure USB x or a Thunderbolt 3 or 4? This device will tell you. Also allows to make precise power consumption measurement over a period of time. Kudos to the manufacturer. Such a device is not easy to find. I recommend.

The most capable analysis device for usb-c and thunderbolt at anywhere near this pricepoint, bit of an indulgence for myself but certainly if you are in the business of diagnosing usb/thunderbolt cabling issues you should have one

Ich bin absolut begeistert vom ChargerLAB POWER-Z KM003C! Dieses kleine Gerät (gerade mal ca. 4×4 cm) hat es wirklich in sich. Trotz seiner kompakten Größe ist es ein professionelles Messinstrument, das nahezu alle gängigen Schnelllade-Protokolle und -Modi erkennt und analysieren kann – darunter PD2.0/3.1, QC2.0–5, PPS, UFCS, VOOC, SCP, FCP und viele mehr. Ich habe den Tester mit dem "REVODATA Gigabit PoE zu USB-C Konverter Adapter (Typ-C Ausgang Strom & Ethernet 2 in 1, bis 45 W, 5–20 V)" getestet – und der POWER-Z hat alle unterstützten Lade-Modi auf einmal erkannt! Das zeigt, wie leistungsfähig und präzise die interne Protokollerkennung funktioniert. Das Display ist hell, die Bedienung intuitiv, und über den HID-Port kann man ihn sogar am PC mit der Software auslesen oder Firmware-Updates durchführen. Die Protokoll-Erkennung funktioniert sogar ohne angeschlossenes Gerät, wenn man den Tester separat mit Strom versorgt – einfach genial. Zur Bedienungsanleitung: Es gibt einen QR-Code auf dem Gerät, der zur offiziellen Anleitung führt – diese ist allerdings nur auf Englisch. Mein Tipp: einfach die Datei als PDF oder Markdown herunterladen, bei ChatGPT hochladen, und man bekommt alle Erklärungen direkt auf Deutsch. Ein bisschen technisches Verständnis sollte man allerdings schon mitbringen. ⚡ Fazit: Ein echtes Power-Tool für alle, die Ladegeräte, Kabel oder Schnelllade-Protokolle testen möchten. Klein, präzise, robust und seinen Preis absolut wert. Klasse Gerät – uneingeschränkte Kaufempfehlung!

Es una herramienta de diagnostico bastante util, si te interesa conocer la capacidad de carga de tus dispositivos, bancos de energia y los protocolos de carga de los distintos tipos de cargadores, ademas de verificar la veracidad de alguno cargadores, en especial los de Apple. Es un poco elevado el costo, pero si eres técnico o un fanatico de la tecnologia, es una buena herramienta.

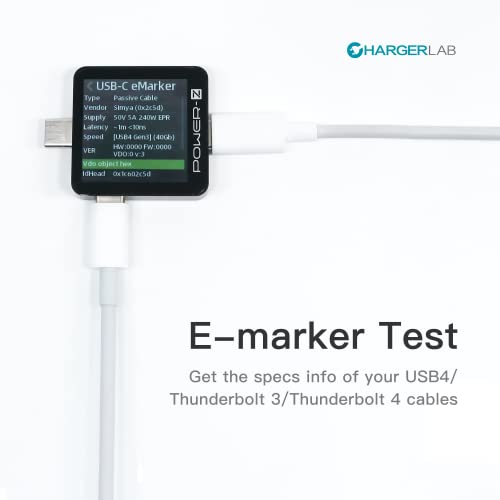

Alles super, misst sehr zuverlässig. USB-C Port ist sehr eng, etwas günstigere OEM-Kabel passen erst gar nicht. Die zusätzlichen Funktionen sind auch super, Protokollerkennung, Ripple-Test, eMarker auslesen. Funktioniert alles tadellos und ist einfach zu bedienen. Sehr hohe Abtastrate und asynchrone Verarbeitung sorgen für zuverlässiges Messen & Anzeigen. Man kann viel damit herausfinden und entlarvt schlechte Kabel oder Charger. Top Teil!
